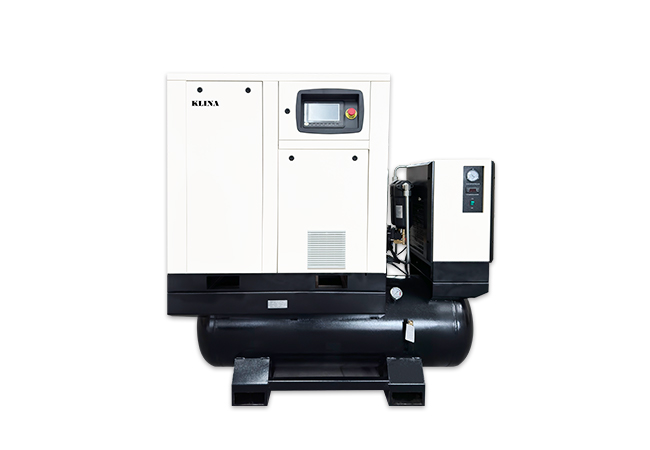

KLINA 4IN1 rotary compressors combine an air compressor, refrigerated dryer, air tank, and precision filter in one compact unit. Available in fixed speed (JLI Series) and variable speed (JLYI Series), they deliver reliable, moisture-free air for smooth equipment operation.
4-in-1 Rotary Screw Compressor Model: JLI & JLYI
- Discharge Pressure: 8-16 [bar], 116-232 [psig]
- Free Air Delivery: 1.1-2.3 [m³/min], 39-81 [cfm]
- Rated Motor Power: 7.5-22 [kW], 10-30 [hp]
A 4-in-1 rotary compressor with a built-in refrigerated air dryer, precision filter system, and air tank provides a complete compressed air solution. This design ensures dependable air quality, space-saving installation, and simplified maintenance. Many industries benefit from 4-in-1 compressors for efficient, high-quality air output in a compact system.
- Features
- Technical Specifications
- Configuration
- Downloads
- Built-in Refrigerated Air Dryer & Precision Filter System
- Air tank capacities from 66 to 105 gallons
- Available in both fixed speed and VSD options
- Low-maintenance direct-drive motor
- Continuous duty rating for industrial and commercial applications
| Model | FAD Capacity | Discharge Pressure | Motor Rating | Sound Level | Voltage/Frequency | Starting Method | Discharge Connection | Dimensions | Weight | Tank Size |
| m³/min | MPa | kW | dB(A) | V/Hz | inch | L x W x H (mm) | kg | L | ||
| JLI08F | 1.1 | 0.8 | 7.5 | 66±2 | 380V/50Hz | Y-Δ Start | G1/2 | 1470*650*1430 | 410 | 250 |
| JLYI08F | Inverter Start | |||||||||
| JLI15F | 2.3 | 15 | 67±2 | Y-Δ Start | G3/4 | 1600*700*1700 | 515 | 300 | ||
| JLYI15F | Inverter Start | |||||||||
| JLI15F-16 | 1.7 | 1.6 | 15 | 67±2 | Y-Δ Start | G3/4 | 1800*860*1830 | 565 | 400 | |
| JLYI15F-16 | Inverter Start | |||||||||
| JLI22F-16 | 2.3 | 22 | 68±2 | Y-Δ Start | G1 | 1800*860*1830 | 600 | 400 | ||
| JLYI22F-16 | Inverter Start |
* JL22F=Air cooled unit
*Design and specifications are subject to change without prior notice or obligation.
JLI & JLYI Model Configuration
Klina Airend
- High efficiency airend
Permanent Magnet Motor
- Motor Enclosure Protection: IP23
- Direct drive
Related Products
Frequently Asked Questions
The following are frequently asked by our customers about KLINA rotary screw type air compressors.
What is a tank-mounted screw air compressor?
A tank-mounted screw air compressor integrates both the compressor and an air receiver tank into one compact unit, offering a space-saving solution that is easy to install and maintain.
What are the key benefits of using a KLINA tank-mounted screw air compressor?
Tank-mounted compressors offer a compact design, low oil consumption, quiet operation, and low maintenance. They are ideal for smaller spaces while delivering reliable, energy-efficient performance.
What are the available models for KLINA 4in1 rotary screw air compressors?
KLINA 4in1 rotary screw air compressors are available in both fixed-speed (JLI Series) and variable-speed (JLYI Series) models, providing flexibility for different operational needs and energy efficiency preferences.
What is the motor power range for tank-mounted screw air compressors?
These compressors come with a rated motor power range of 7.5-22 kW (10-30 hp), offering reliable air delivery suitable for various industrial applications.
What's the lead time?
Typically, the lead time for tank mounted compressor with integrated dryer is approximately 25-30 working days.
