Standard Compressed Air Filter C/T/A Series
- Air Capacity: 1.2-160 [Nm³/min], 42-5650 [cfm]
- Pressure Range: ≤1.6 MPa
- Micron Size: 3 μm, 1 μm, 0.01 μm
- Applicable Compressor Models: OGWY(B), OGWYC, OGWBD
The Gairs C/T/A Series ultra-clean precision air filters provide high-quality compressed air filtration, specifically designed for applications such as laser cutting, bottle blowing, high-end spraying, food processing, electronics, and petrochemicals. By installing the precision filters , contaminants in compressed air (such as oil, water, and dust) can be effectively removed.
- Features

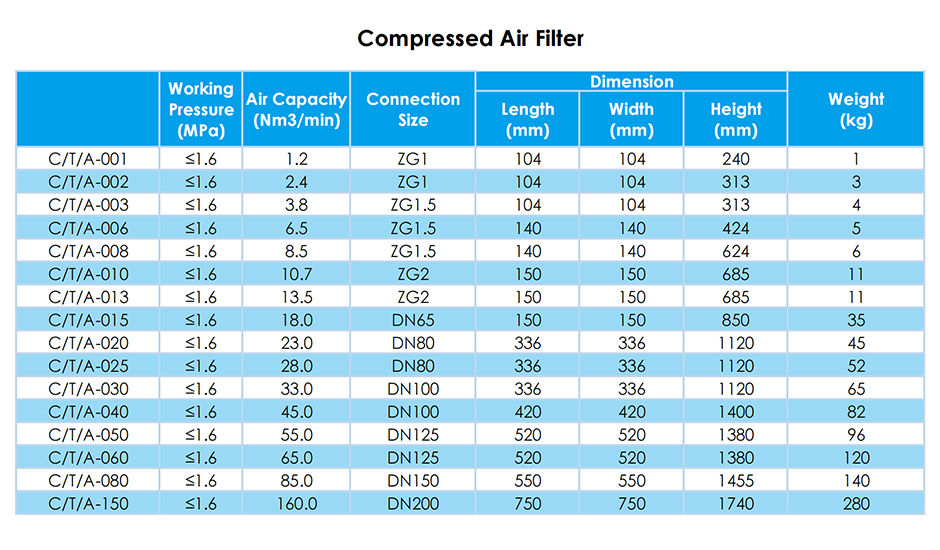

- Technical Specifications
Corrosion Protection Inside and Outside the Air Filter
- Carbon steel filter housing
- Inner layer rust-proof coating and outer layer liquid coating
Low Pressure Drop
- 10% more energy-efficient than traditional filters.
Pleated Filter Element
- Larger filtration area for improved energy efficiency.
C Series Vapor Removal Filters |
T Series Dust Removal Filters |
A Series Oil Removal Filters |
|
Filter Precision | 3 μm | 1 μm | 0.01 μm |
Moisture Removal Efficiency | More than 95% | More than 99% | 99.99% |
Maximum Inlet Liquid Load | 20000 ppm (w/w) | 1000 ppm (w/w) | 100 ppm (w/w) |
Minimum Oil Residue | 5 ppm (w/w) | 1 ppm (w/w) | 0.01 ppm (w/w) |
DOP Test Penetration Rate | Less than 0.1% | Less than 0.03% | Less than 0.0001% |
Operating Temperature Range | 80℃ | 66℃ | 66℃ |
Initial Pressure Drop (Dry) | 0.007 MPa | 0.007 MPa | 0.009 MPa |
Initial Pressure Drop (Saturated) | 0.014 MPa | 0.014 MPa | 0.021 MPa |
Maximum Working Pressure | ≤1.6 MPa |
Frequently Asked Questions
The following are frequently asked by our customers about compressed air filter.
Our compressed air filters support a wide air capacity range from 1.2 to 160 Nm³/min (42 to 5650 cfm), making them suitable for various industrial applications, from small setups to large-scale operations.
These filters operate effectively within a pressure range of up to 1.6 MPa, allowing them to meet the demands of diverse industrial environments where high pressure is required.
Our compressed air filters can capture particles as small as 3 μm, 1 μm, and even down to 0.01 μm, ensuring optimal filtration for applications requiring high-purity air.
Our standard air filters are available in both aluminium alloy and stainless steel options, providing flexibility to suit different environmental and operational requirements.
It’s recommended to check and replace filters every 8000 running hours or 12 months, depending on the usage and environment. Regular maintenance helps ensure efficient operation and prolongs the filter’s lifespan.
