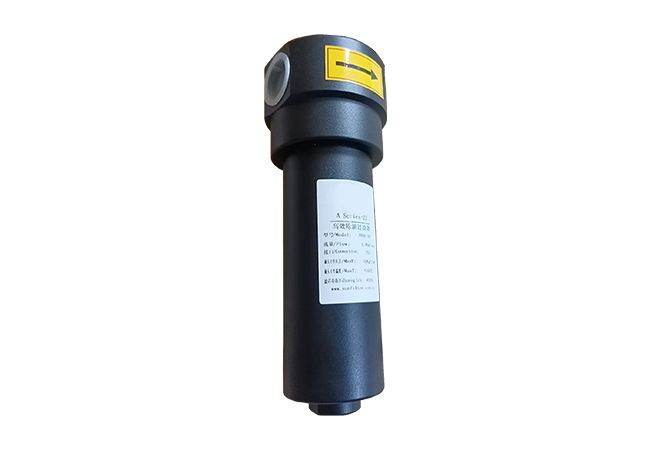

High Pressure Compressed Air Filter HPC/T/A Series
- Air Capacity: 1.2-160 [Nm³/min], 42-5650 [cfm]
- Pressure Range: ≤4.0 MPa
- Micron Size: 3 μm, 1 μm, 0.01 μm
- Applicable Compressor Models: OGWBE
The Gairs HPC/T/A Series of high-pressure filters is suitable for compressed air and gas filtration. The housings are precision-machined using CNC technology and undergo high-pressure testing. Materials include 316L, 304 stainless steel, carbon steel, and forged aluminum, with pressure ratings of 4.0 MPa and 8.0 MPa to suit different requirements.
- Features
- Technical Specifications
Corrosion Protection Inside and Outside the Air Filter
- Carbon steel filter housing
- Inner layer rust-proof coating and outer layer liquid coating
Low Pressure Drop
- 10% more energy-efficient than traditional filters.
Pleated Filter Element
- Larger filtration area for improved energy efficiency.
| C Series Vapor Removal Filters |
T Series Dust Removal Filters |
A Series Oil Removal Filters |
|
| Filter Precision | 3 μm | 1 μm | 0.01 μm |
| Moisture Removal Efficiency | More than 95% | More than 99% | 99.99% |
| Maximum Inlet Liquid Load | 20000 ppm (w/w) | 1000 ppm (w/w) | 100 ppm (w/w) |
| Minimum Oil Residue | 5 ppm (w/w) | 1 ppm (w/w) | 0.01 ppm (w/w) |
| DOP Test Penetration Rate | Less than 0.1% | Less than 0.03% | Less than 0.0001% |
| Operating Temperature Range | 80℃ | 66℃ | 66℃ |
| Initial Pressure Drop (Dry) | 0.007 MPa | 0.007 MPa | 0.009 MPa |
| Initial Pressure Drop (Saturated) | 0.014 MPa | 0.014 MPa | 0.021 MPa |
| Maximum Working Pressure | ≤4.0 MPa | ||
Not Available. Please inquire for specific models.
Related Products
Frequently Asked Questions
The following are frequently asked by our customers about high pressure air filter.
Our high pressure air filters accommodate air capacities ranging from 1.2 to 160 Nm³/min (42 to 5650 cfm), making them suitable for various applications, from small-scale systems to large industrial setups.
Our high pressure air filters are designed to operate safely and efficiently within a pressure range of up to 4.0 MPa, catering to demanding high-pressure applications.
We offer filters with micron sizes of 3 μm, 1 μm, and 0.01 μm, ensuring precise filtration for industries that require high-purity compressed air.
Our high pressure air filters are available in both carbon steel and stainless steel options, providing flexibility to suit different environmental and operational requirements.
It’s recommended to check and replace filters every 8000 running hours or 12 months, depending on the usage and environment. Regular maintenance helps optimize performance and extend filter lifespan.
