Single Stage Air Compressors

A single-stage air compressor compresses air in one step, using a single piston, rotary element or single screw element.
This design is ideal for low-to-moderate pressure applications, offering straightforward operation for general uses.

Single Stage Air Compressors Lineup

전력: 7.5-250kW
압력: 0.7-1.0 MPa
FAD 용량: 0.9-43.0m³/분
압축 단계 수: 1
윤활제: RO수

OGWBD 압축기 370x370

전력: 11-220kW
압력: 0.3-0.4MPa
FAD 용량: 2.4-60.0m³/분
압축 단계 수: 1
윤활제: RO수

JLWY 공기 압축기 370x370
JLWY 시리즈 VSD 압축기

전력: 7.5-250kW
압력: 0.7-1.0 MPa
FAD 용량: 0.9-43.0m³/분
압축 단계 수: 1
윤활제: RO수

JLWYD 공기 압축기 370x370
JLWYD 시리즈 VSD 압축기

전력: 11-220kW
압력: 0.3-0.4MPa
FAD 용량: 2.4-60.0m³/분
압축 단계 수: 1
윤활제: RO수

JLY 공기 압축기 370x370

전력: 7.5-250kW
압력: 0.8MPa
FAD 용량: 1.1-45.5m³/분
압축 단계 수: 1
윤활제: 오일

JL 공기 압축기 370x370

전력: 7.5-250kW
압력: 0.8MPa
FAD 용량: 1.1-45.5m³/분
압축 단계 수: 1
윤활제: 오일

JLI 공기 압축기 370x370

전력: 7.5-22kW
압력: 0.8-1.6MPa
FAD 용량: 1.1-2.3m³/분
압축 단계 수: 1
윤활제: 오일

JLI 공기 압축기 370x370

전력: 7.5-22kW
압력: 0.8-1.6MPa
FAD 용량: 1.1-2.3m³/분
압축 단계 수: 1
윤활제: 오일

8개의 제품이 발견되었습니다.

How Do Single Stage Air Compressors Work?

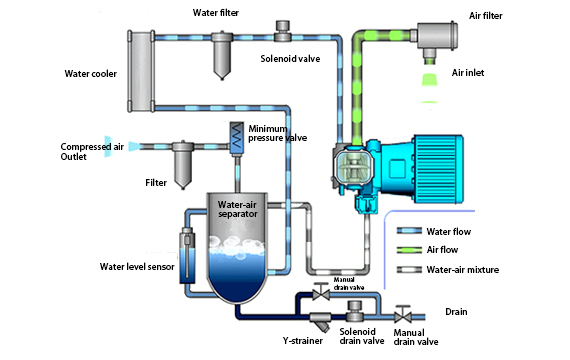

로터리 스크류 압축기 다이어그램 570x360

In oil-free water-injected screw models, single phase compressors use a rotating helical screw and two symmetrically placed star wheels to compress air. Water injected into the compression chamber absorbs heat, reduces friction, and seals gaps for higher efficiency. After compression, a separator tank divides air and water, with the air discharged and water recirculated within the system.

In oil-flooded screw models, single phase compressors operate by using two interlocking helical rotors that spin in opposite directions to compress air. As air enters the system, it fills the gap between the screw threads or grooves, where it is compressed as the screws rotate. The majority of rotary screw compressors are oil-flooded, where oil is used to seal, lubricate, and cool the compression process. However, oil-free screw compressors are also available for applications requiring contamination-free air.

Interested in Our Single Stage Air Compressor?

전문가의 안내와 개인 맞춤형 솔루션을 통해 귀하의 필요에 꼭 맞는 완벽한 압축기를 찾아보세요!

GAIRS와 KLINA의 주요 차이점은 무엇인가요?

GAIRS와 KLINA는 모두 GAIRS 그룹에 속합니다. GAIRS는 고급 압축 공기 시장을 목표로 하며, 물 주입식 무급유 싱글 스크류 기술에만 집중하고 있습니다. GAIRS의 사명은 100%의 깨끗한 압축 공기를 제공하는 동시에 모든 GAIRS 압축기의 지구 온난화 지수(GWP)를 낮춰 더욱 지속 가능한 환경 조성에 기여하는 것입니다.

KLINA는 신뢰할 수 있는 파트너들과 협력하여 오일 주입식 로터리 스크류 압축기와 물 주입식 무급유식 싱글 스크류 압축기를 제공합니다. 이 모델들은 고객의 압축 공기 요구에 효율적이고 경제적이며 실용적인 솔루션을 제공합니다.

OEM 주문을 받으시나요?

Yes, we accept OEM orders. We are happy to customize our products to meet your specific requirements. Please provide detailed specifications, including design, configuration, and any other special requests, so we can offer the best solution tailored to your business.

16bar에서 스크류 공기 압축기에 대한 정보를 알려주시겠습니까?

네, 다른 압력의 압축기가 페이지에 표시되지는 않지만, 언제든지 이메일로 문의해 주시면 됩니다.

관련 상품

당신도 알고 싶을 수도 있습니다

The following are frequently asked by our customers about single stage air compressors.

What is a single-stage air compressor?

A single-stage air compressor compresses air in one stroke, where atmospheric air is drawn into a cylinder and compressed to deliver at a set pressure, typically around 90-145 psi.

How does a single-stage compressor differ from a two-stage compressor?

A single-stage compressor compresses air only once, while a two-stage compressor compresses air twice, achieving higher pressure and making it suitable for heavier industrial applications.

What are the benefits of a single-stage air compressor?

Single-stage compressors offer simpler design, lower initial cost, easy maintenance, and are generally more compact, making them a great choice for small businesses or DIY users.

How do I maintain a single-stage air compressor?

For oil-injected compressors, regular maintenance includes checking oil (or water) levels, valves and other spare parts as well as cleaning and replacing filters. Proper maintenance extends the compressor’s lifespan and ensures consistent performance.

What is the maximum pressure a single-stage compressor can achieve?

At Gairs, single-stage compressors typically reach up to 181 psi (12.5 bar), though some models may go higher to 232 psi (16 bar), depending on the application.
